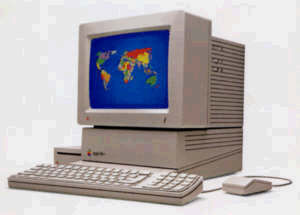

  Apple IIGS (ROM 01)



CPU (65C816) detail and the Mega II, all the original Apple II in one chip!.
Example Frame






Manufacturer Apple Computer Inc. (USA) Type Desktop
Production start (mm-yyyy) - 1986 Production end (mm-yyyy) -
RAM 256Kb - 8Mb ROM 128Kb
CPU 65C816 - 2.8 Mhz
Operating System AppleDOS 3.3, ProDOS, CP/M (with Z80 card)
Text (Cols x Rows) 40/80 x 24
Graphics 280 x 192 6 colors; 560 x 192 B&W; 640x200 4 colors, 320x200 16 colors
Sound
Storage memory Floppy 140 Kb; Floppy 800Kb
Serial port Parallel port
Others port
Original price   Currency original price
Units sold
Notes
Configurations
User webmaster



Other sites about this computer
TEK
TEK
webmaster
webmaster


Manuals





Pro-Sel 16 429Kb - Pdf

RAMpack 4GS 121Kb - Pdf




Sirius RAM IlGS 17Kb - Pdf


















Draw Plus 8.5Mb - Pdf



Brochures

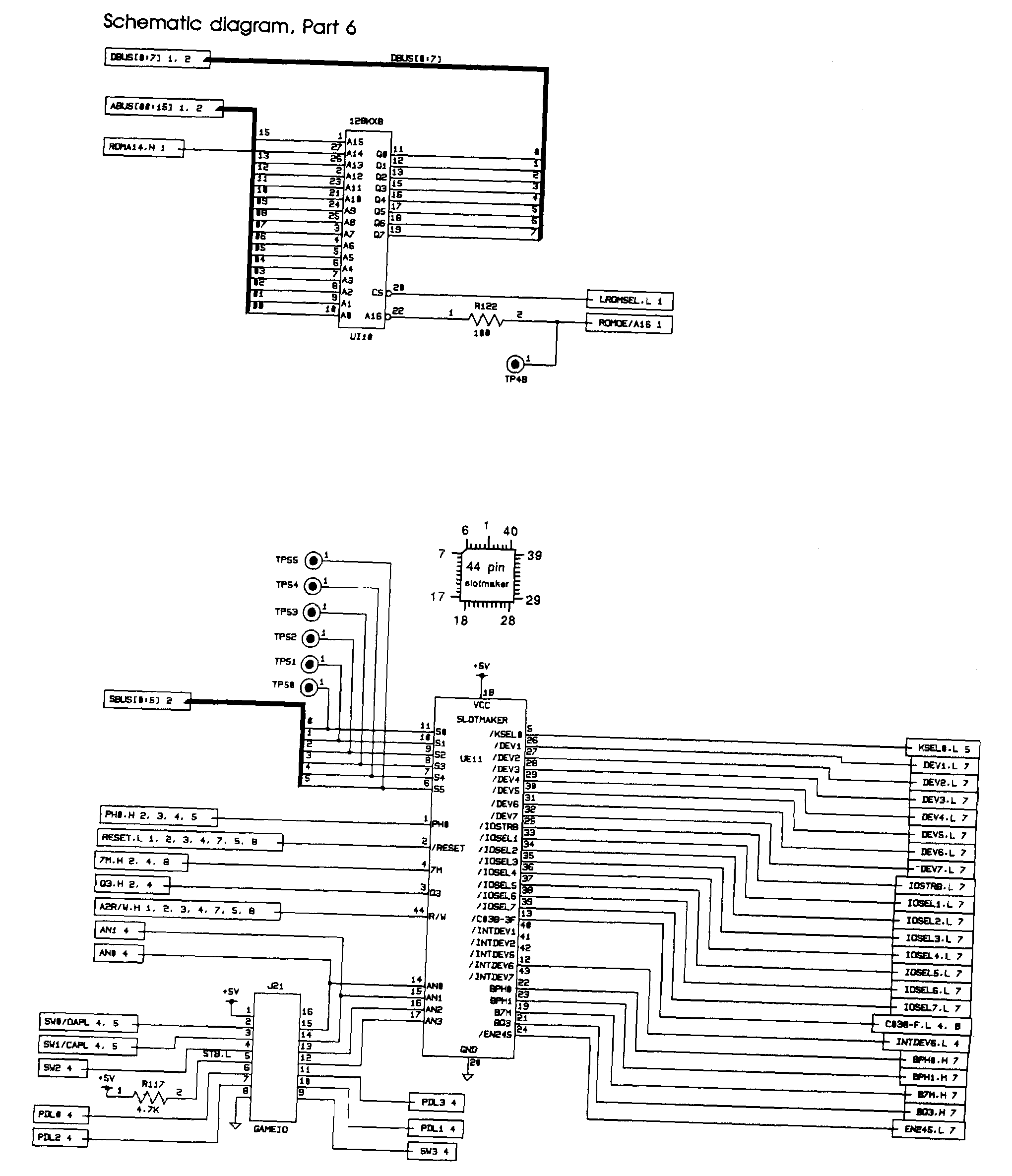

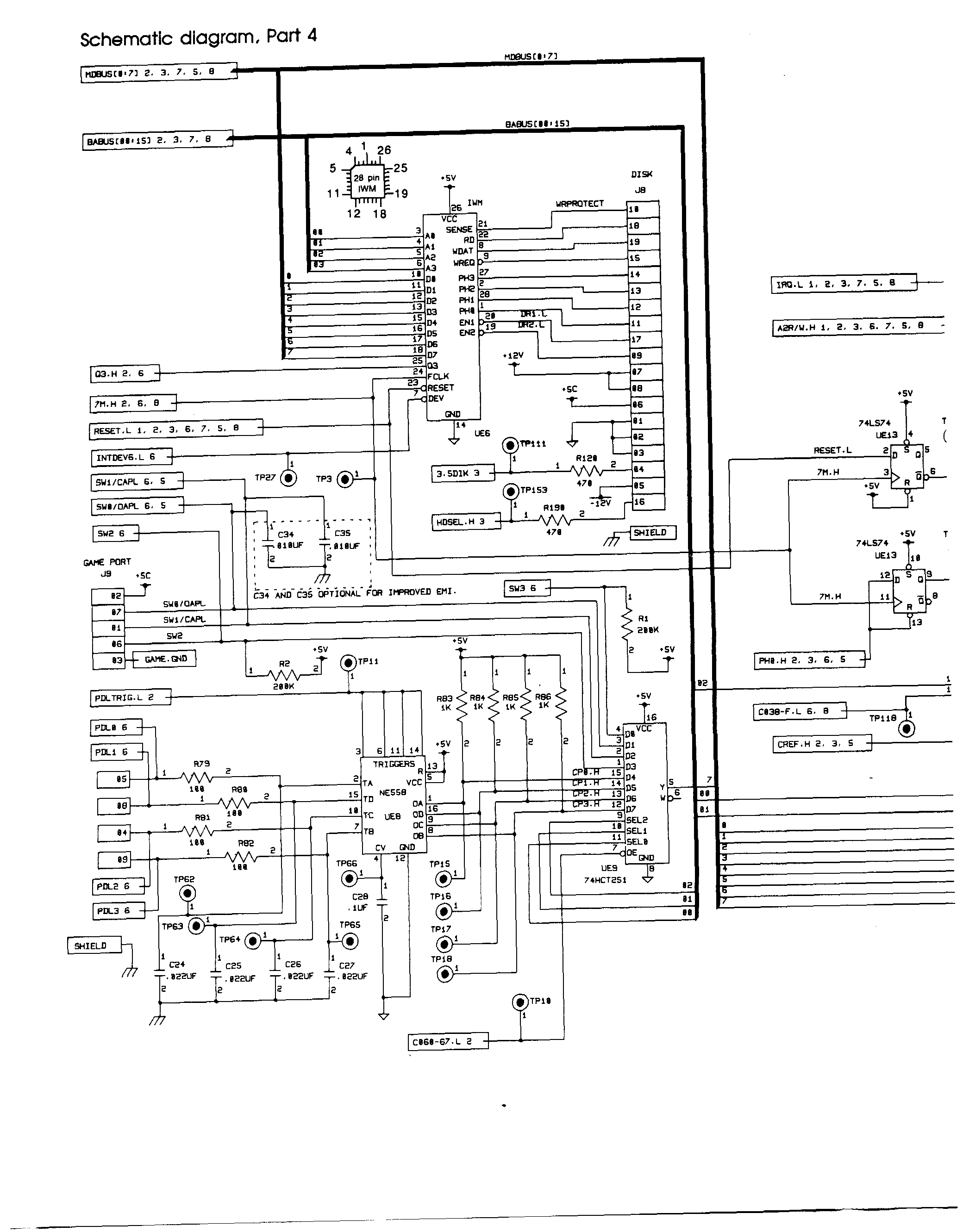

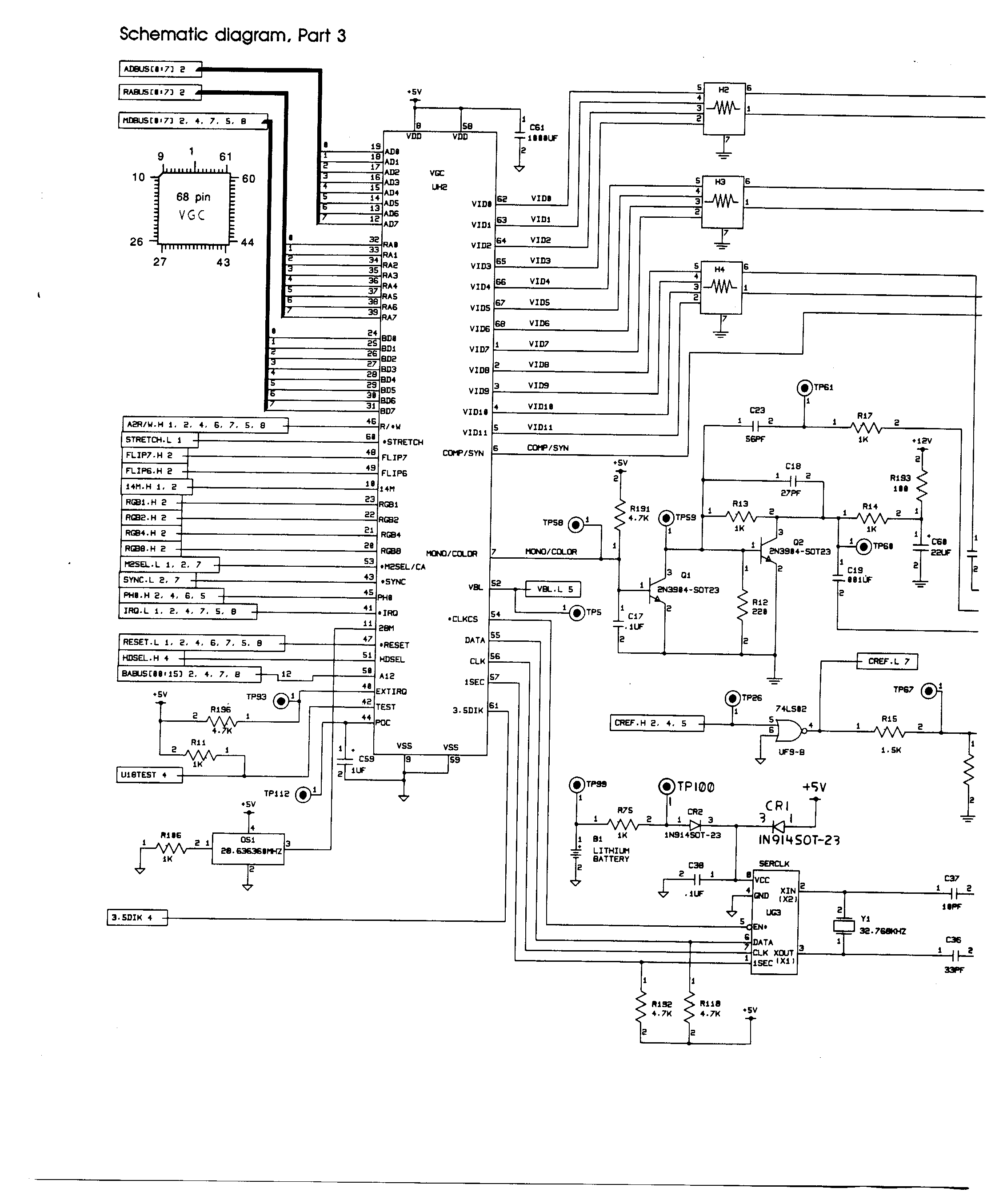

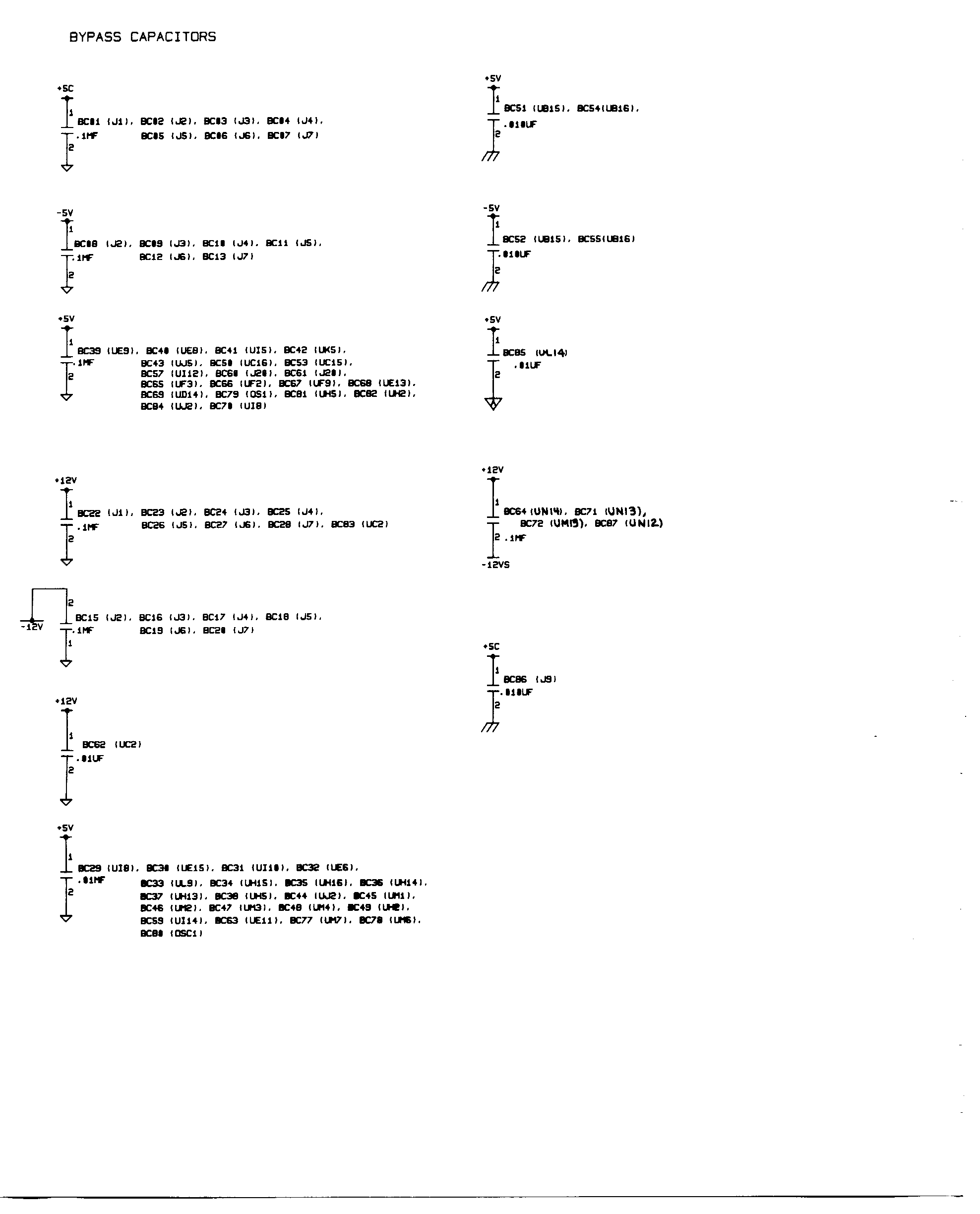

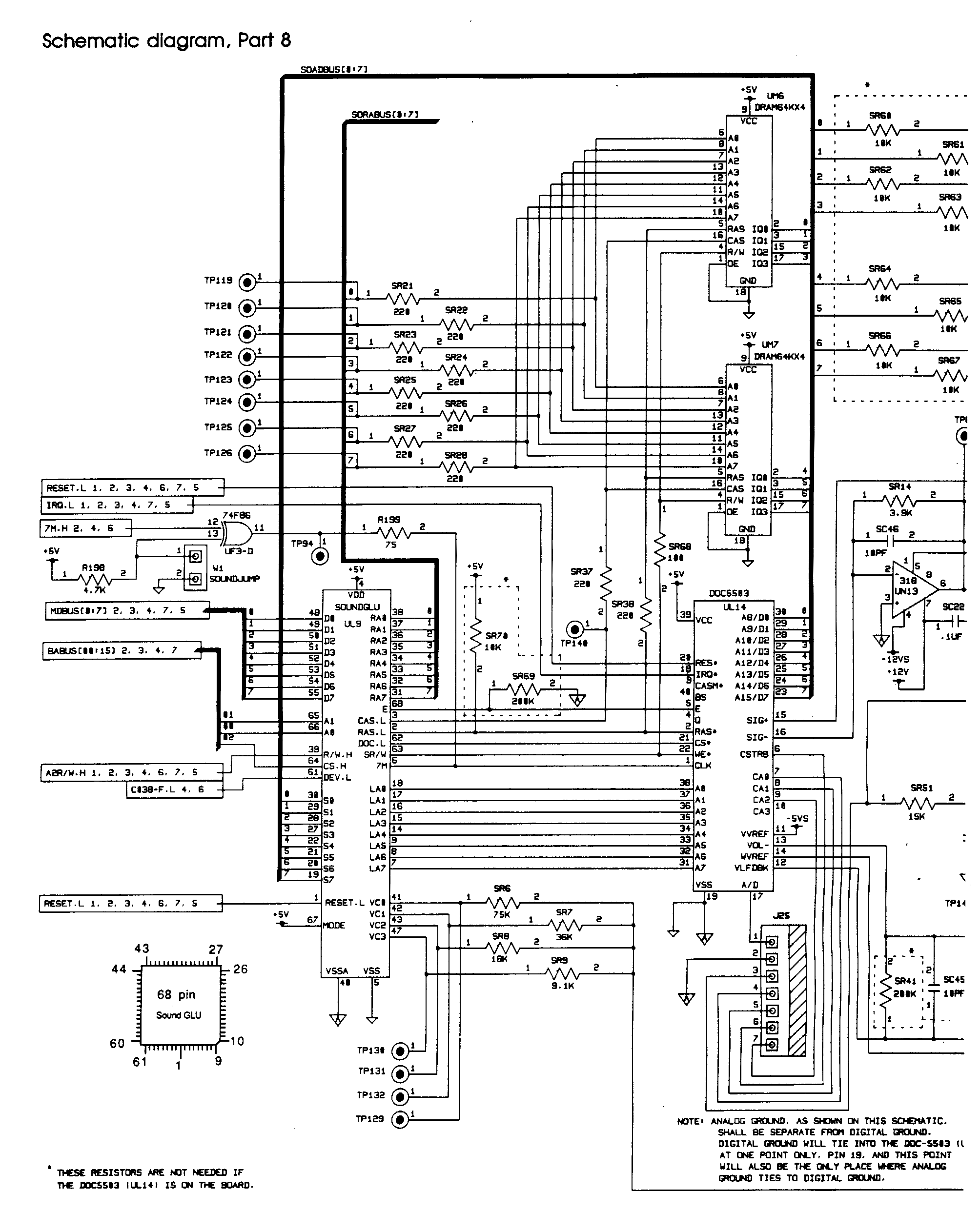

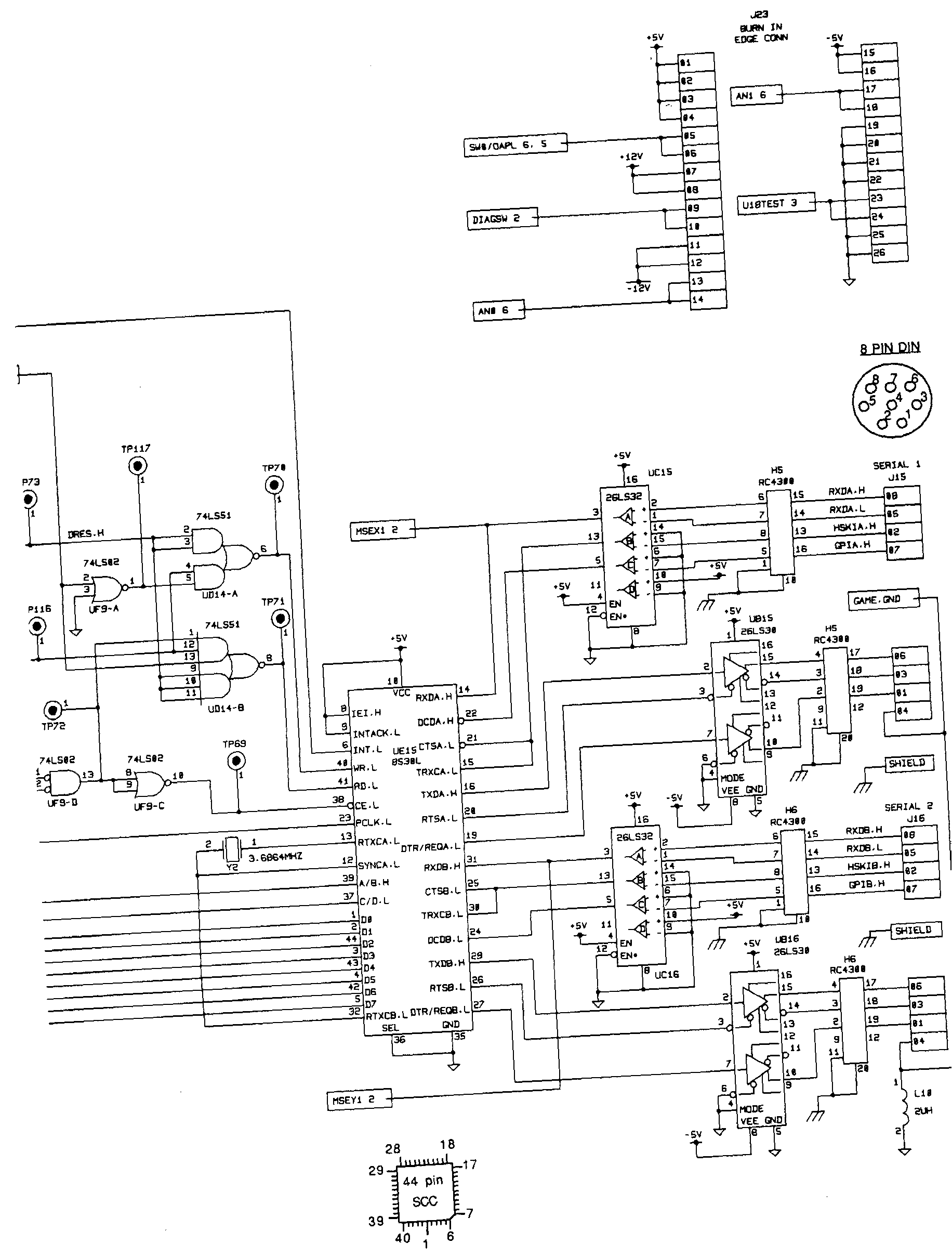

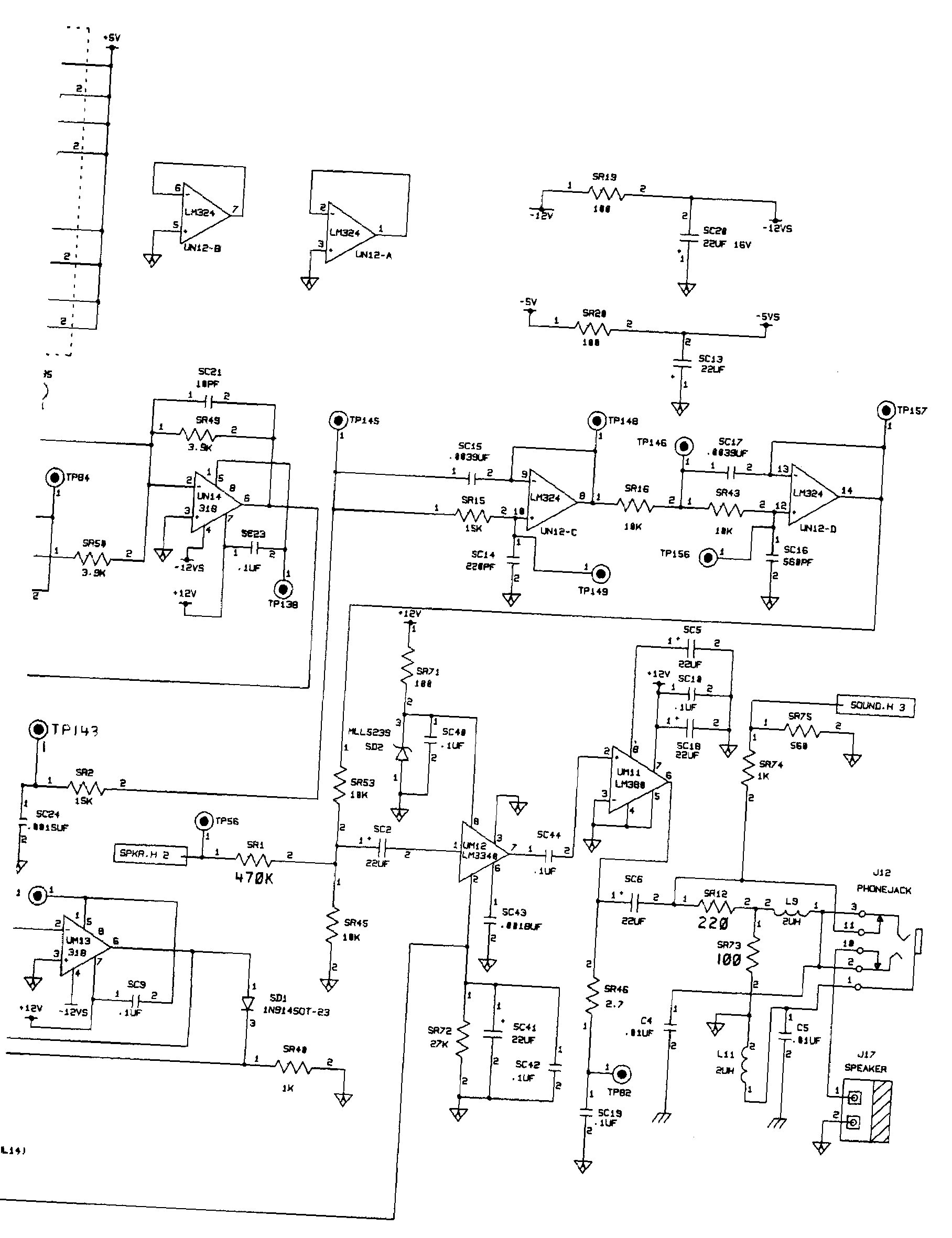

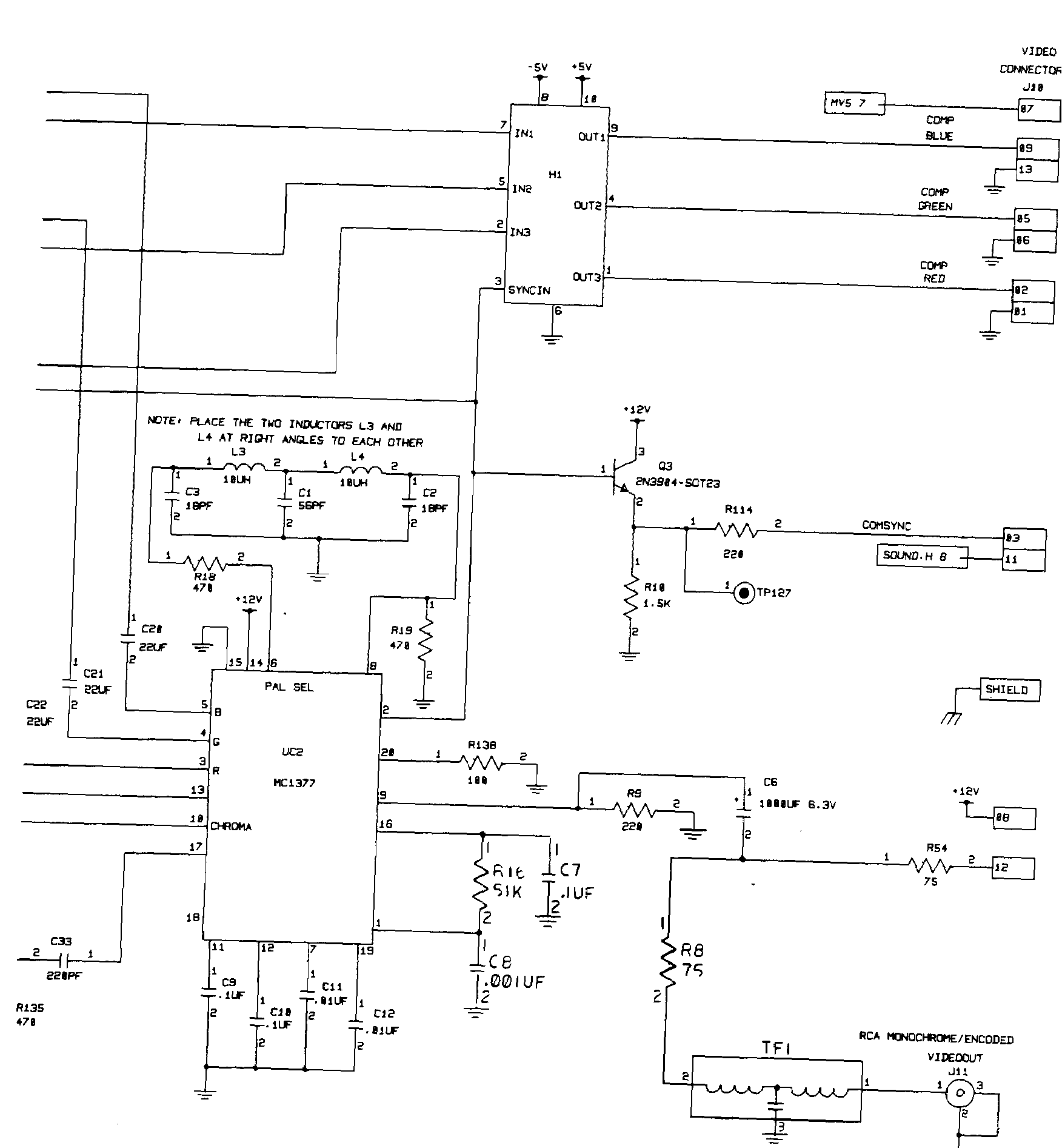

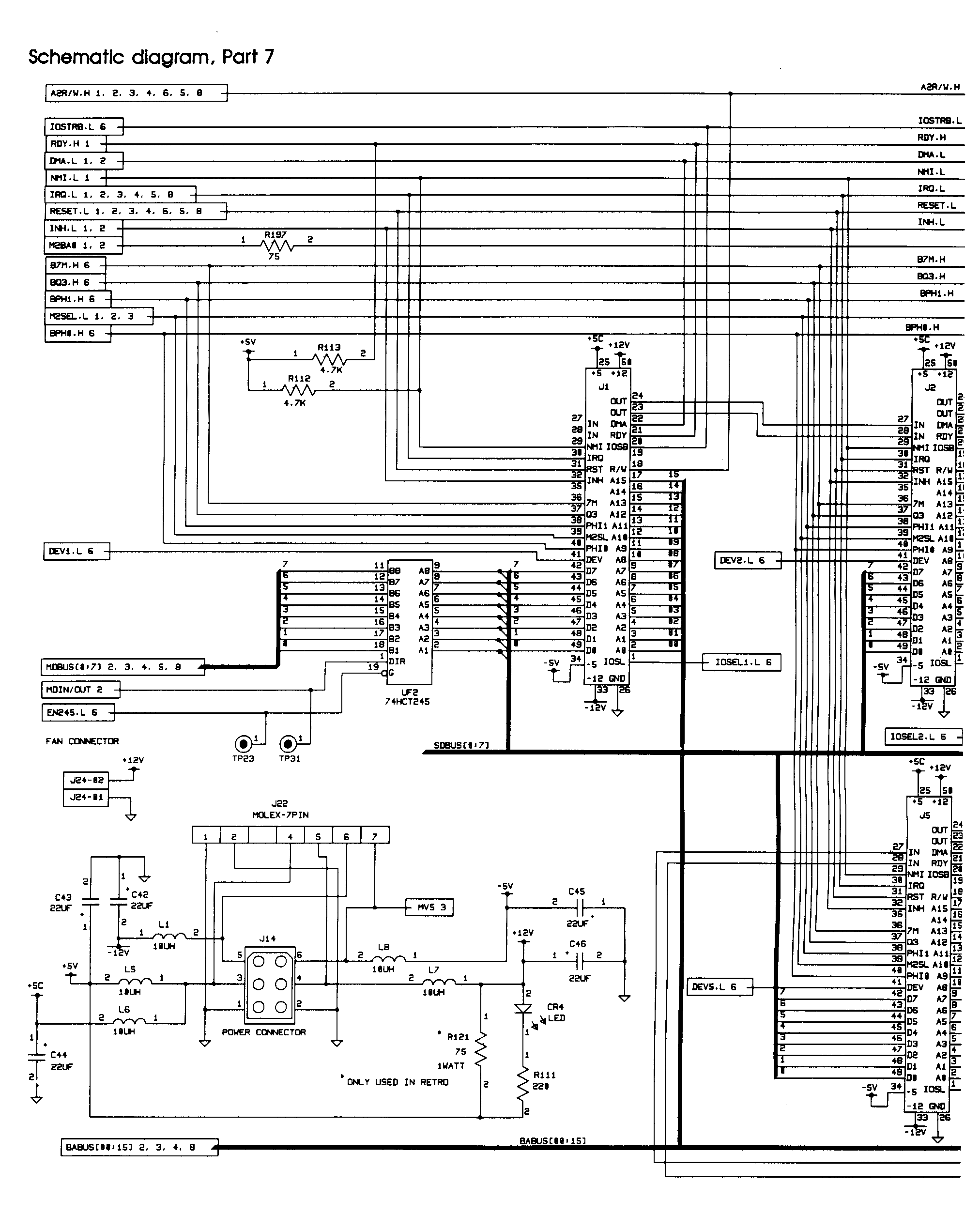

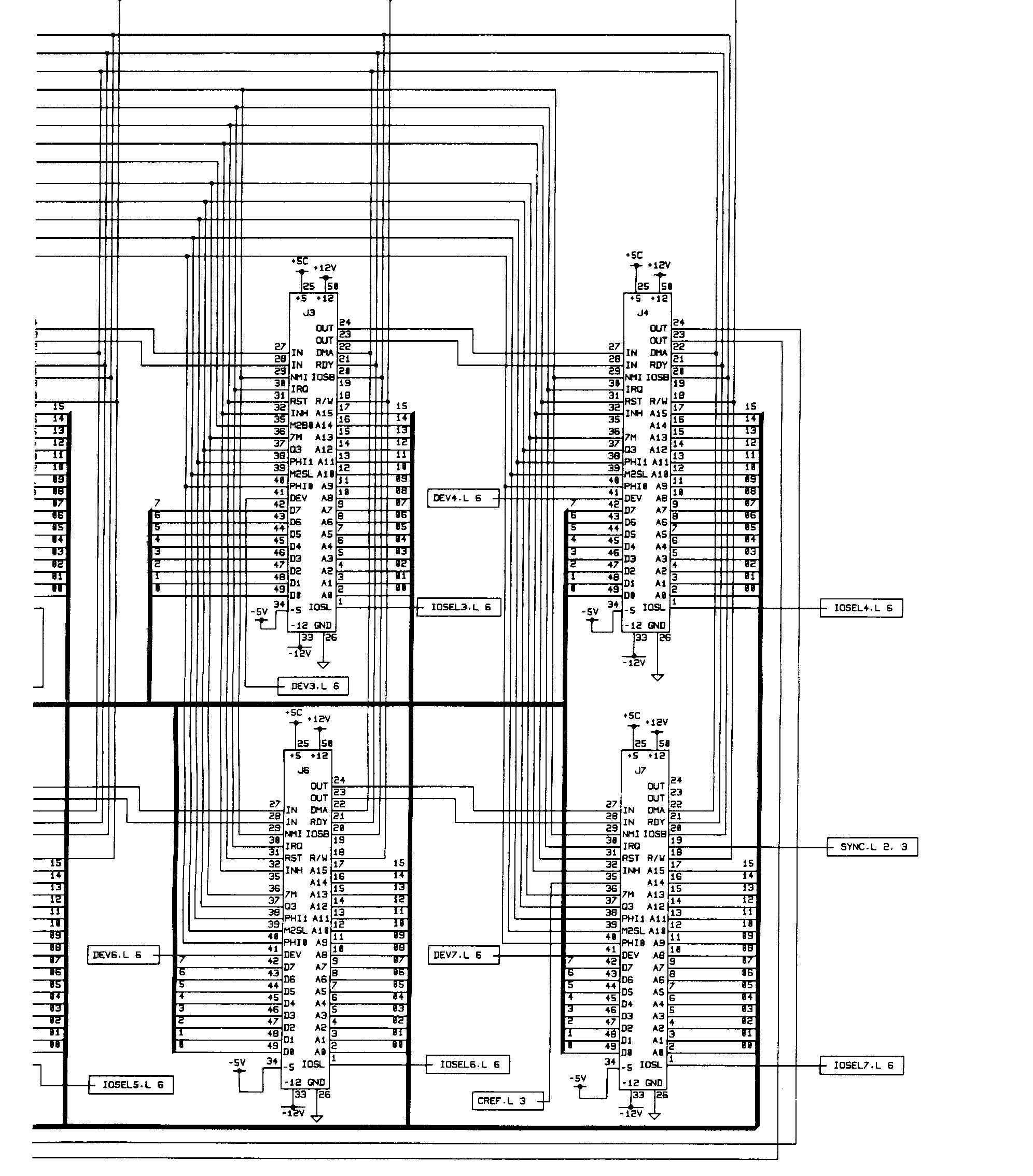

Schematic diagrams















Articles




Are there some errors? Do you have other infos ? .
