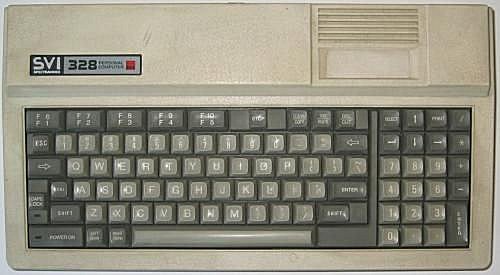

| Name | SVI 328 Mk II |
|
|
| Manufacturer | Spectravideo Inc. (USA) | Type | Desktop |
| Production start (mm-yyyy) | 1984 | Production end (mm-yyyy) | - |
| RAM | 80-144Kb | ROM | 32-96Kb |
| CPU | Z80A - Mhz | ||
| Operating System | SV BASIC v 1.1, CP/M | ||
| Text (Cols x Rows) | 80 x 24 | ||
| Graphics | 256 x 192 | ||
| Sound | 3 voices | ||
| Storage memory | Tape, Floppy 5.25" (SV-902) | ||
| Serial port | Parallel port | ||
| Others port | SV-601 Super expander | ||
| Original price | Currency original price | ||
| Units sold | |||
| Note | It is like the SV-328, but with the RF modulator built-in. Also, in this edition are used fewer components, for example the RAM ICs have more capacity, and an ULA(Uncommited Logid Array) also was used to replace some TTL chips. The Spectravideo SV-328 has the characteristics very near of the MSX (same video chip, sprites, sound, I/O), because the MSX Standard was based on the SV-318/328 design, but isn't fully compatible. More info on The Unofficial Spectravideo Homepage. |
||
| Configurations | Of the 80Kb of RAM, 16Kb are VRAM. | ||
| User | webmaster | ||
