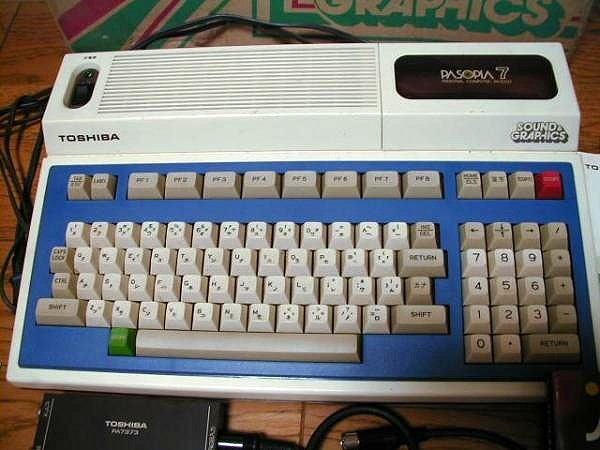

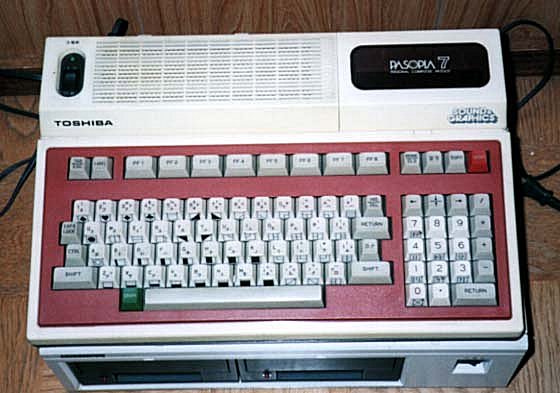

Pasopia 7

Toshiba (Japan)

Previous: Pasopia 5 Next: Satellite Pro 400 CDT
Visits: 9
Name Pasopia 7 Toshiba
Manufacturer Toshiba (Japan) Type Desktop
Production start (mm-yyyy) 8 - 1983 Production end (mm-yyyy) -
RAM 64Kb + 56Kb VRAM ROM 48Kb
CPU Z80A - 4 Mhz
Operating System T-BASIC 7
Text (Cols x Rows) 80x25, 80x20, 36x25, 36x20
Graphics 320x200@ 8colors; 640x200 monochrome
Sound 6 sound channels (5 octaves) and two channels of white noise
Storage memory Cassette
Serial port Parallel port
Others port 3 Expansion ports (ROM & RAM Cartridges, BUS)
Original price   Currency original price 119800
Units sold
Note The CPU is a LH0080A, a Z80A clone made by Sharp.
Some sources say that the PSG is a Texas Instruments SN76489, although the SN76489 only has 4 sound channel.

Configurations The code of the Pasopia 7 is PA7007.
The 56Kb of VRAM are divided 48Kb for Graphics and 8Kb for text modes, allowing that eight text screens are remembered simultaneously.
Of the 48Kb of ROM, 16Kb are used by the BIOS & IPL, and 32Kb by the T-BASIC 7.
User juanvm
