Yamaha (Japan)

Previous: CX5F Next: CX5M II
Visits: 3

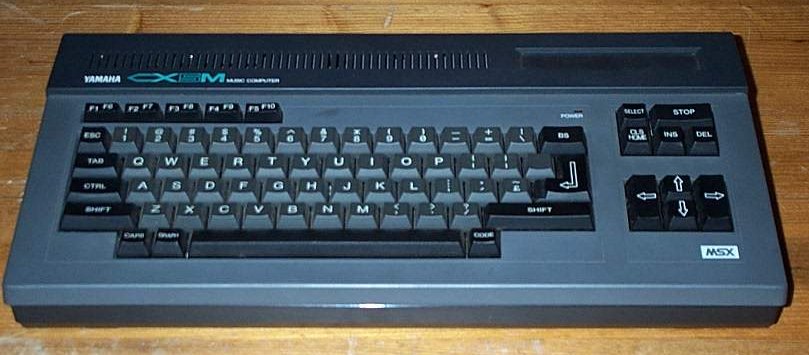

Name CX5M Yamaha
Manufacturer Yamaha (Japan) Type Desktop
Production start (mm-yyyy) 1984 Production end (mm-yyyy) -
RAM 32Kb + 16Kb VRAM ROM 32Kb + 32Kb
CPU Z80A - 3,579 Mhz
Operating System MSX 1: MSX BASIC v 1.0
Text (Cols x Rows) 40x24, 32x24
Graphics 256x192@16 colors; 32 sprites
Sound 3 sound channels (8 octaves) and a channel of white noise ; Module SFG-01.
Storage memory Tape, Floppy 3.5"
Serial port Parallel port
Others port MIDI, Joystick, RF
Original price   Currency original price
Units sold
Note Built-in SFG-01 module. The SFG-01 is the FM Sound Synthesizer Unit: only suports cassette for saving/loading data, has 32Kb ROM with Music BIOS, music monitor program, 46 presets voices and MIDI Interface.
