PC-8201A

Nec ()

Previous: PC-8001 mkII SR Next: PC-8300
Visits: 9

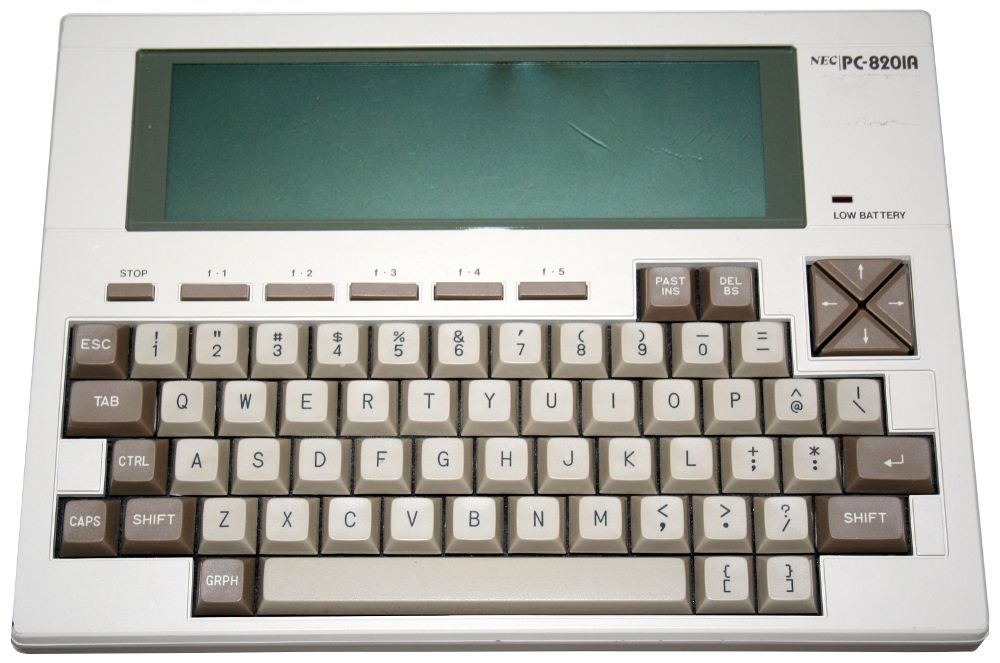

Name PC-8201A Nec
Manufacturer Nec () Type Desktop
Production start (mm-yyyy) 1984 Production end (mm-yyyy) -
RAM 16 KB up to 128 KB ROM 32 KB
CPU Intel 80C85 - 2.4 Mhz
Operating System
Text (Cols x Rows) 40 x 8
Graphics 240 x 64
Sound 4 channels, 3.5 octaves
Storage memory
Serial port Parallel port
Others port RS 232 (DSUB 25 pin type), SIO1, SIO2 connectors, 8 pin duPont BERG modular jack - 3 megabytes/minute max transfer CMT socket - 8 pin DIN plug for cassette recorder, Standard centronics printer port, Bar code reader socket - 9 pin DSUB connector, SYSTEM SLOT - for ram cartridges (programs, software etc.)
Original price   Currency original price
Units sold
Note
Configurations
