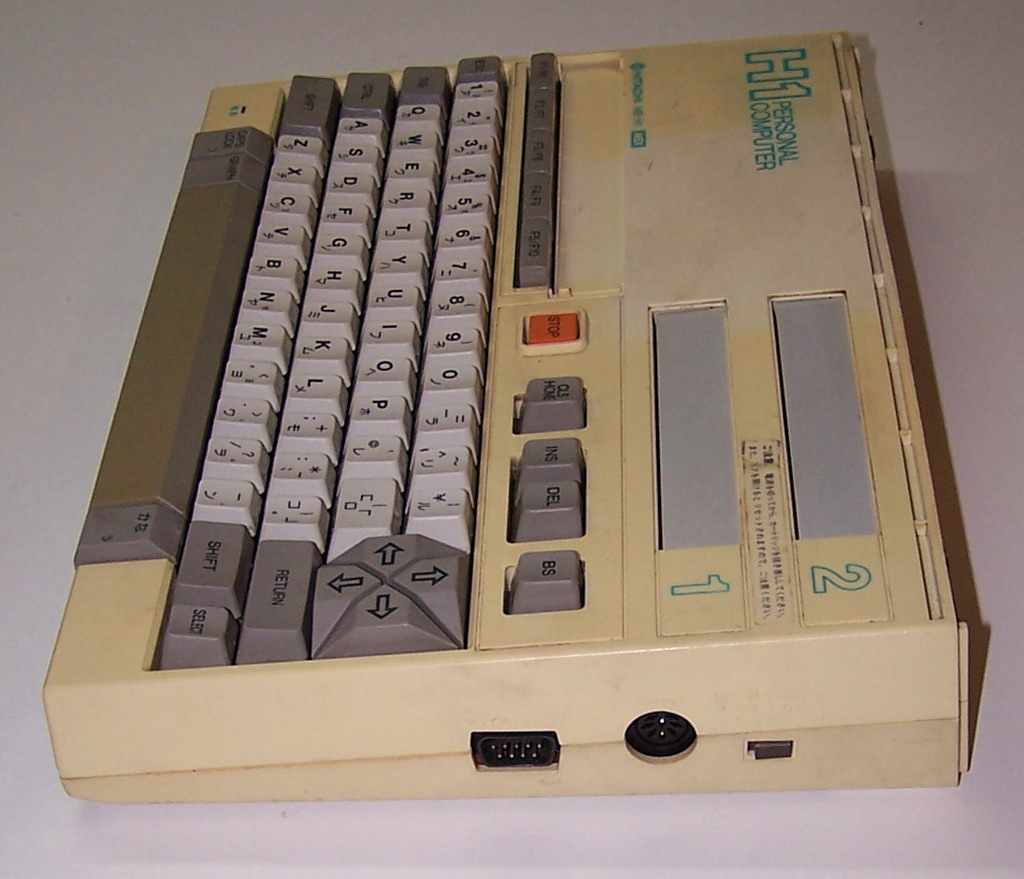

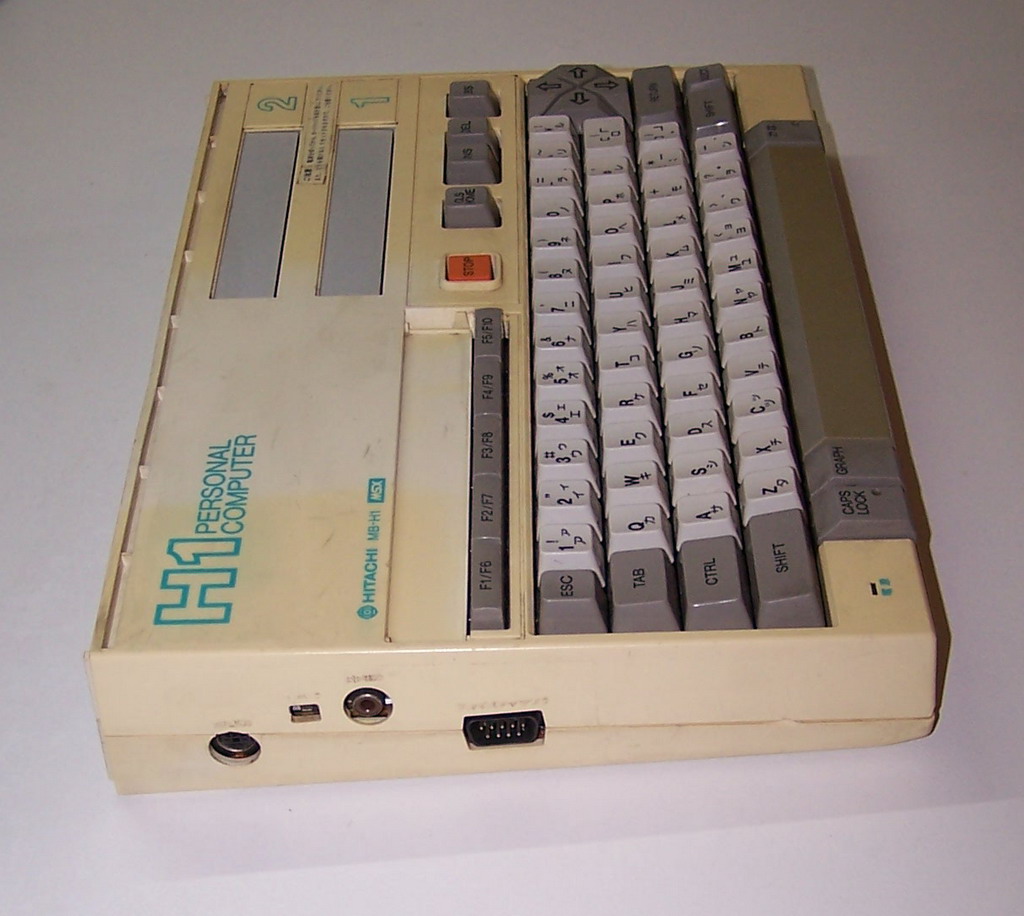

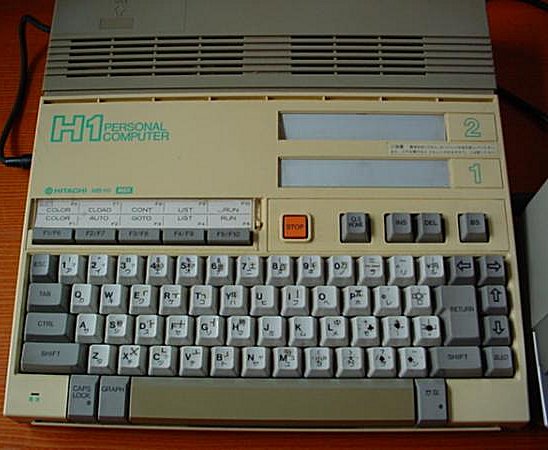

MB-H1 (Humanicatio)

Hitachi Ltd. (Japan)

Previous: MB-6890 (Peach) Basic Master Level 3 Next: MB-H1E
Visits: 12
Name MB-H1 (Humanicatio) Hitachi Ltd.
Manufacturer Hitachi Ltd. (Japan) Type Desktop
Production start (mm-yyyy) 12 - 1983 Production end (mm-yyyy) -
RAM 32Kb + 16Kb VRAM ROM 32Kb + 8Kb

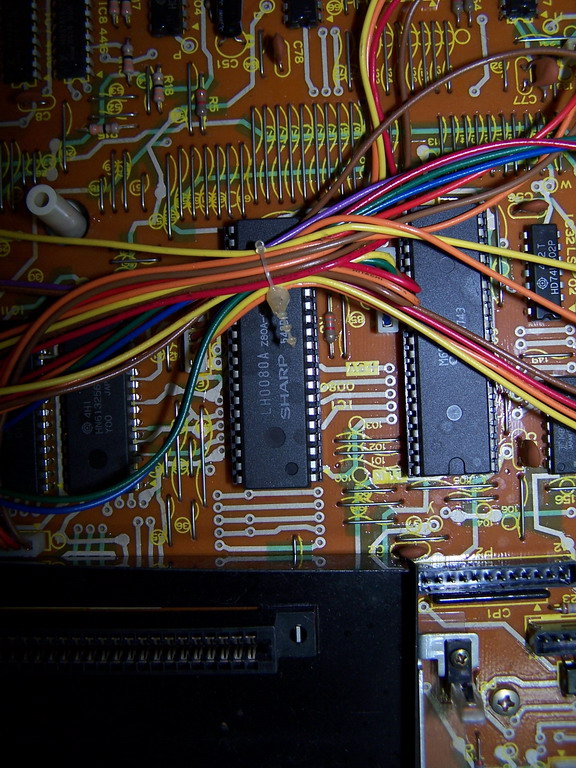

CPU Z80A - 3,579 Mhz
Operating System MSX 1: MSX BASIC v 1.0
Text (Cols x Rows) 40x24, 32x24
Graphics 256x192@16 colors; 32 sprites
Sound 3 sound channels (8 octaves) and a channel of white noise
Storage memory
Serial port Parallel port 1
Others port
Original price   Currency original price 250 USD
Units sold
Note In the extra ROM it has two programs: Sketch and Music.
Configurations When turn on, a menu appears with the following options, some in Japanese:
* F1 -> BASIC
* F2 -> (Japanese). This accedes to the MB-H1 System Monitor Utility, a dissasembleur/monitor of machine code.
* F3 -> ROM. Unknow utility (it'is in Japanese). A drawing appears in order that you insert a cartridge.
* F4 -> Sketch (in japanese): draw program.
* F5 -> Music (in japanese): it appears a music keyboard.
