Toshiba (Japan)

Previous: HX-21 Next: HX-23
Visits: 6

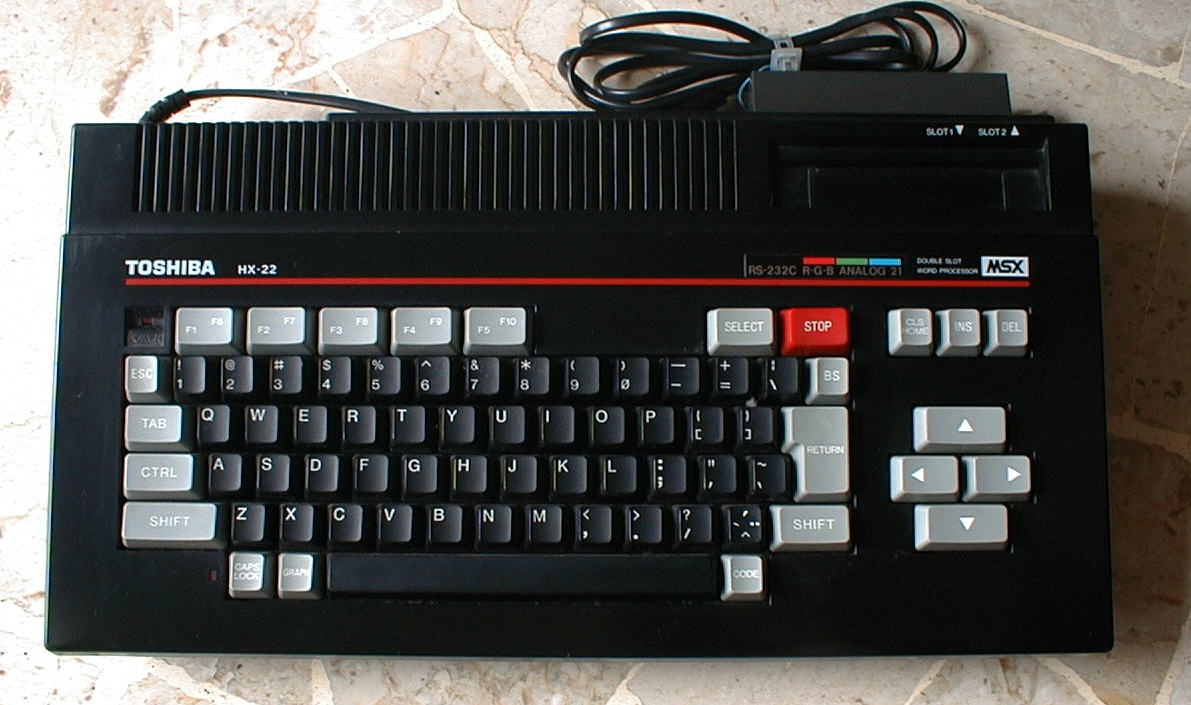

Name HX-22 Toshiba
Manufacturer Toshiba (Japan) Type Desktop
Production start (mm-yyyy) 1984 Production end (mm-yyyy) -
RAM 64Kb + 16Kb VRAM ROM 32Kb + 32Kb
CPU Z80A - 3,579 Mhz
Operating System MSX 1: MSX BASIC v 1.0
Text (Cols x Rows) 40x24, 32x24
Graphics 256x192@16 colors; 32 sprites
Sound 3 sound channels (8 octaves) and a channel of white noise
Storage memory

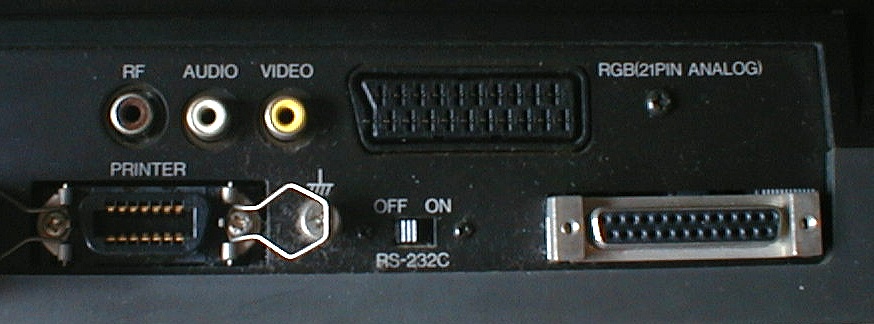

Serial port RS-232C Parallel port
Others port RGB Connector (SCART)
Original price   Currency original price 89800
Units sold
Note The differences with the standard MSX are the incorporation of one serial port RS-232C.
Also, it incorporates a SCART connector.
All Toshiba HX models (MSX/MSX2) was sell in Japan under the global name of Pasopia IQ
Configurations In the 32Kb of extra ROM has built-in a Word Processor.
